Product Description

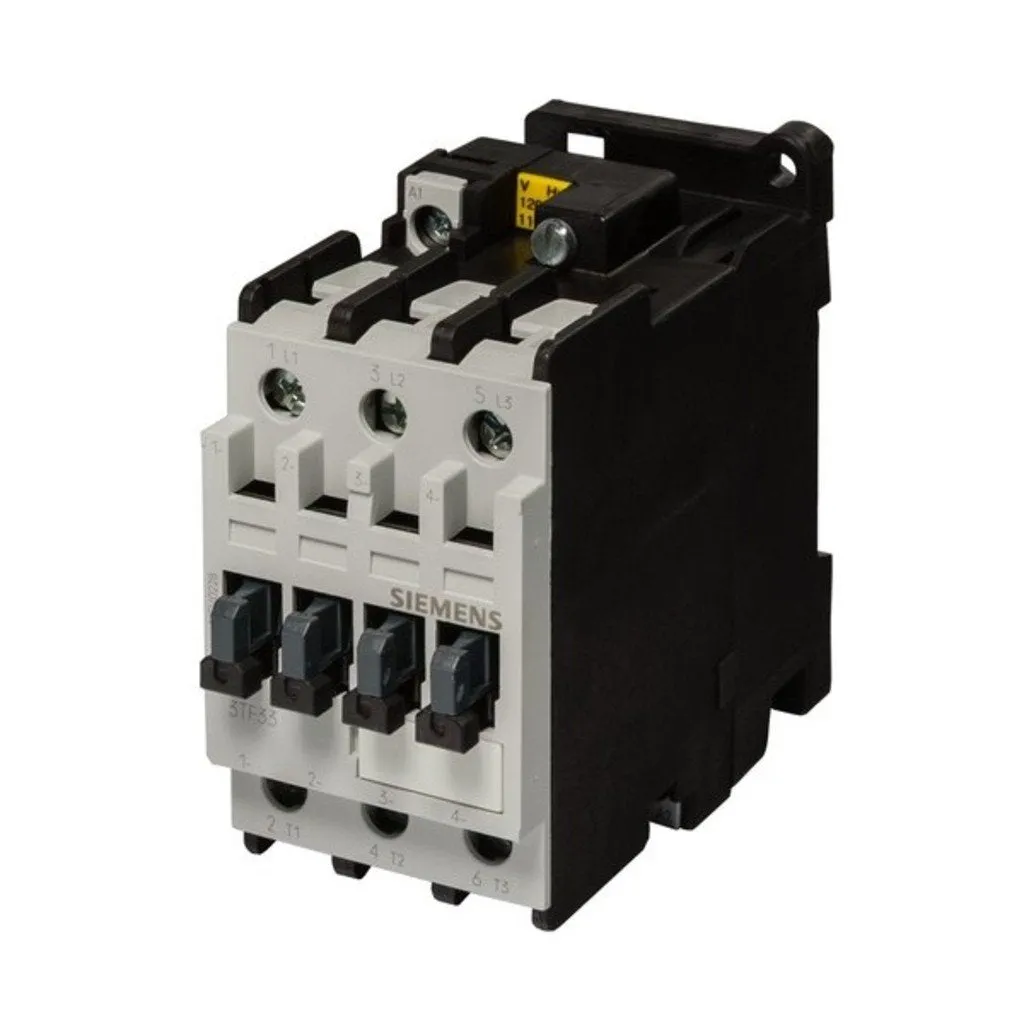

3 Phase contactor with AC3 rating of 16 amperes. The general part number of the contactor is 3TF3200 and comes with neither a Normally Open (NO) contact or a Normally Close(NC) contact. The ordering code for the same shall be 3TF3200-0AP0. The coil voltage of this contactor is 230V AC at 50Hz. Contactors with 60Hz are also available against request.
The Siemens 3TF3200 contactor is sutable for motor load of upto 11HP/7.5KW in three phase under AC-3 utilisation category. This Siemens 3TF Contactor is also referred to as Size 1 contactor. These contactors are available in AC and DC operation. The Siemens 3TF contactors are IEC certified and follow international norms.
Product Specifictions
Brand |
Siemens |
Model |
3TF3200-0AF0 |
Series |
3TF |
Ampere (AC3) |
22A |
Poles |
3 |
Coil Voltage 50Hz |
110 V |
Auxiliary Contacts |
NA |
Operation |
AC and DC (Separate products) |
Motor Rating |
11HP/7.5KW |
HxWxD (mm) |
92x45x85 |
Weight (in kg) |
0.400KG (approx) |
Standards Applicable |
IEC60947-2, ISI |
