The slim-line, surface mounted solution.

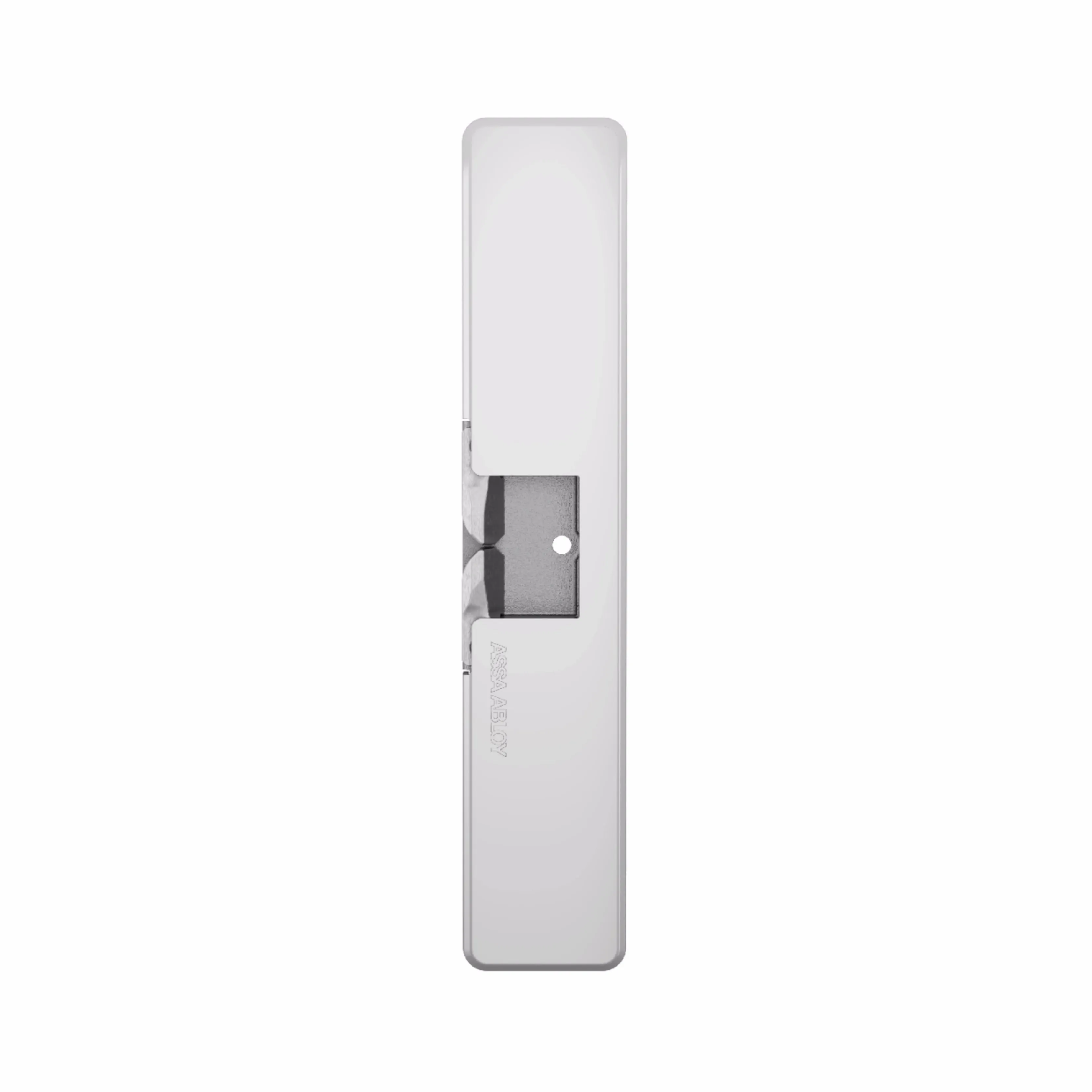

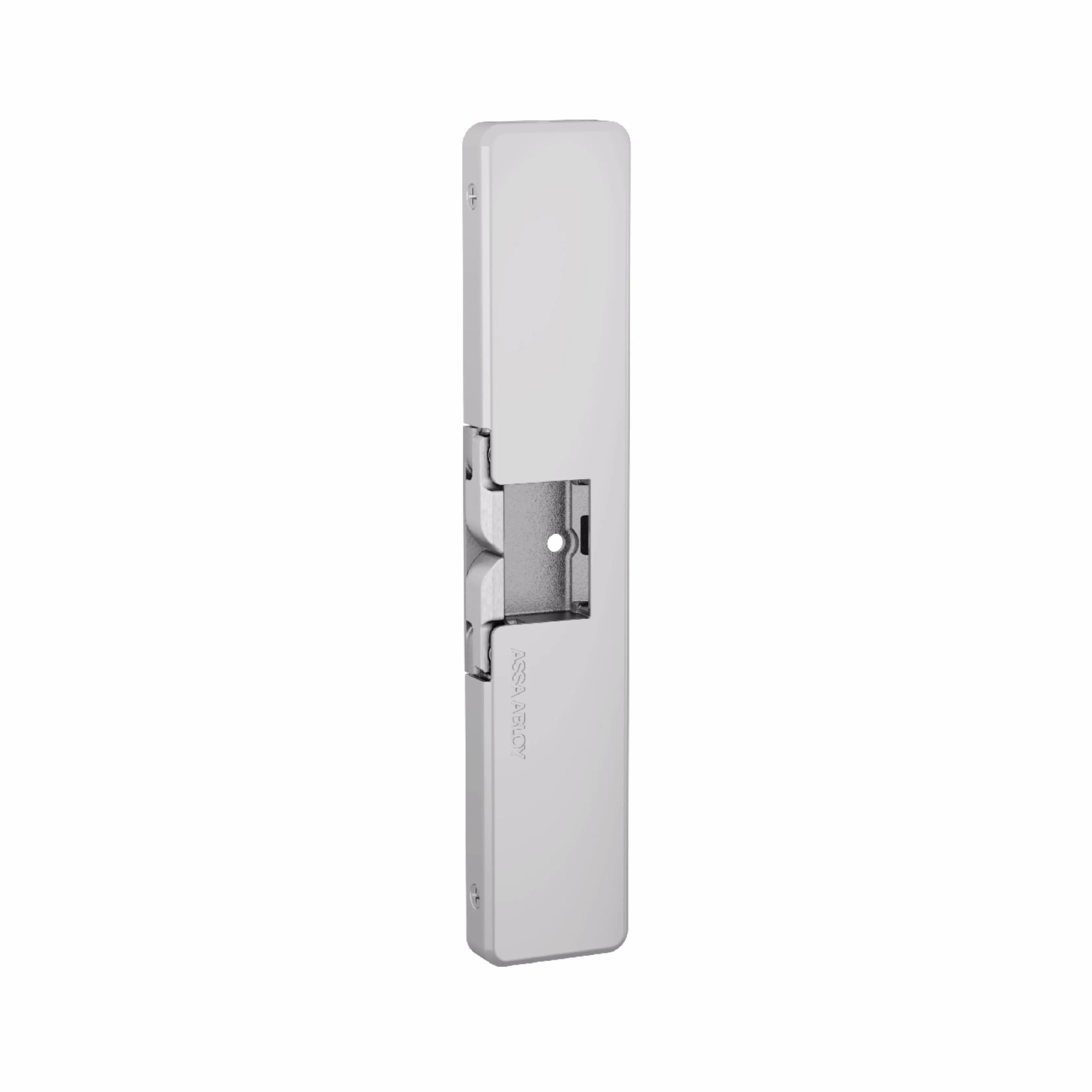

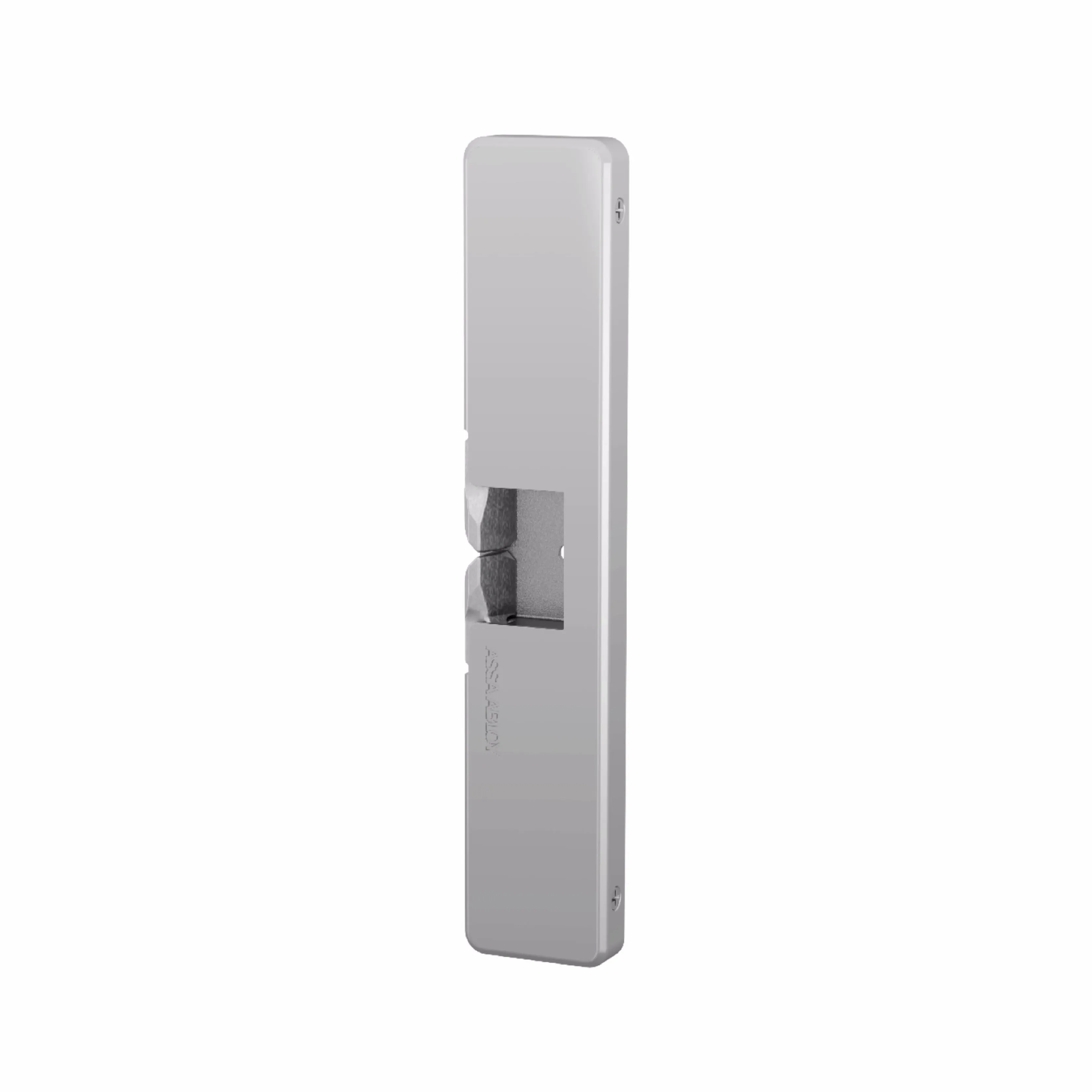

The HES 9400 series is a slim-line, outdoor rated surface mounted electric strike designed to accommodate rim exit devices with a 1/2" Pullman latch. All components are completely encased within its 5/8" thick stainless steel housing. No cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt, and install. The HES 9400 ships with a 1/8" spacer plate to accommodate varying door gaps. The HES 9400 exceeds Grade 1 standards for strength and performance. It is field selectable for fail secure/fail safe operation, and for 12 or 24VDC. The HES 9400 features a smooth cover to conceal the mounting screws and provide a sleek surface for superior looks.

Product Features

• Installs in metal and wood frames
• Completely surface mounted
• One 1/8" spacer plate included
• Decorative cover for sleek new look
• Stainless steel construction
• Tamper resistant
• Static strength 1,500 lbs
• Dynamic strength 70 ft-lbs
• Endurance 1,000,000 cycles
• Field selectable fail secure/fail safe
• Horizontal adjustment
• Non-handed
• Internally mounted solenoid
• Accommodates up to 1/2" Pullman latch
• Dual voltage 12 or 24 VDC

Specification

• Adjustability : Horizontal
• Surface Mounting : No cutting required
• Frame Material : Metal|Wood
• Shim Type : NA
• Latchbolt Accommodation : Up to 1/2"

• Voltage : 12/24
• Monitoring Installation : Factory Configured
• Monitoring Options : Latchbolt Monitoring|Latchbolt Strike Monitor

• Endurance (cycles) : 1,000,000
• Dynamic Strength (ft-lbs) : 70
• Tamper Resistant : Yes
• Fail Safe | Fail Secure : Field selectable fail safe/fail secure

• Warranty : SecuriCare five-year, no fault, no questions asked warranty
• Lock Type : Exit Device

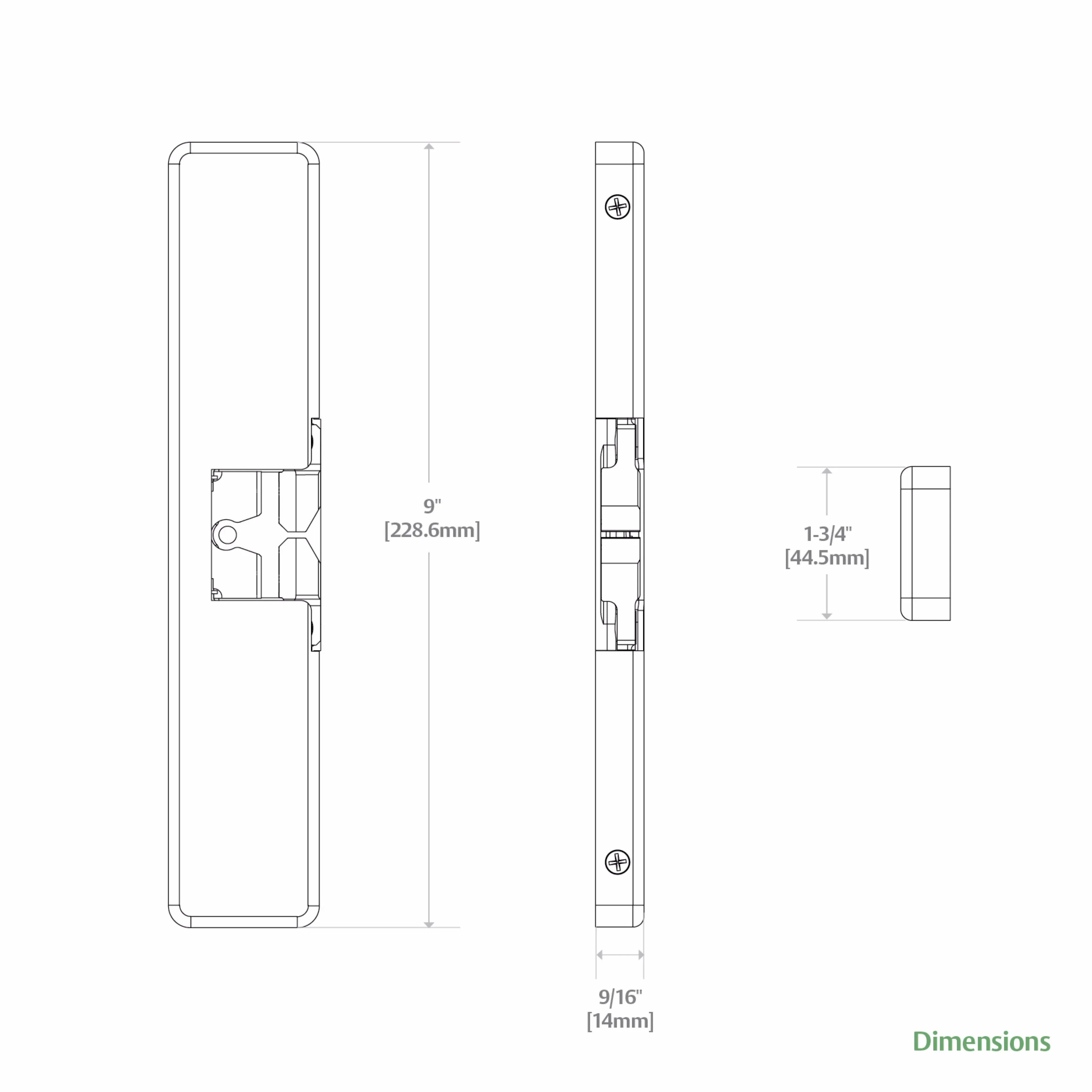

• Strike Body Depth (in) : 0.5625
• Strike Body Height (in) : 9

• ANSI/BHMA A156.31, Grade 1
• RoHS Compliant
• UL 1034 burglary-resistant listed
• UL 305 - Standard for Panic Hardware
• UL294 Listed
