Product Details
＋

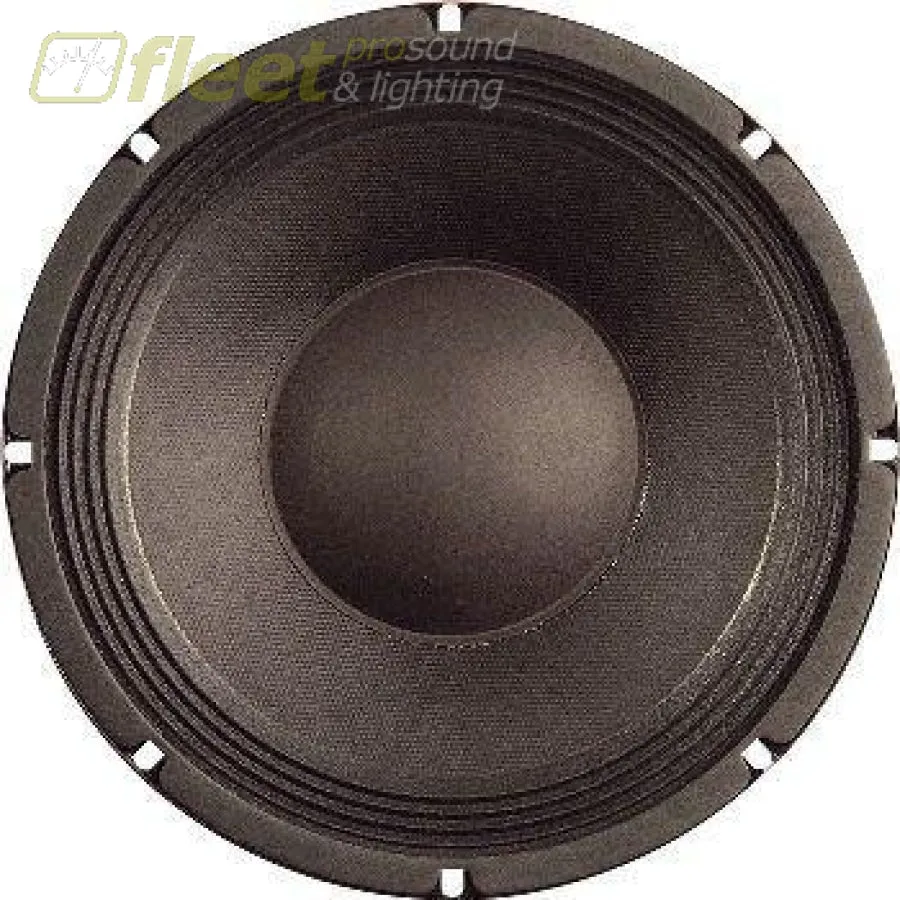

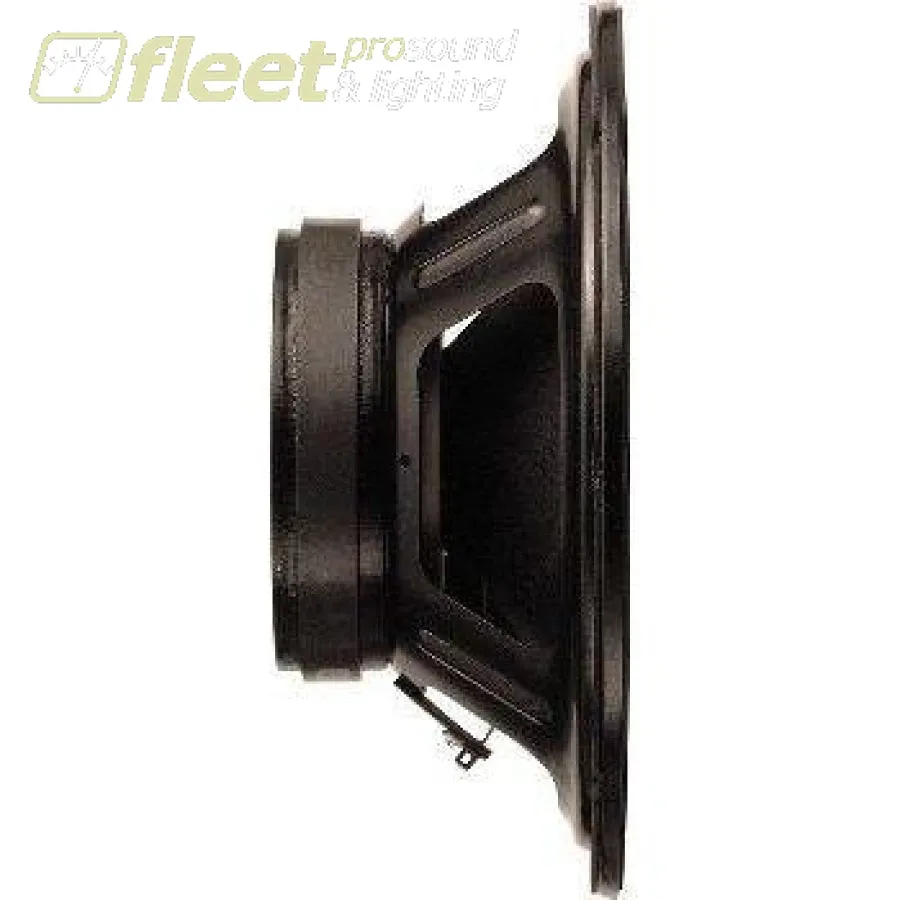

The concert-tough Eminence Beta-10A 10" Bass/PA Driver features performance optimized for Bass guitar. It is also suitable for use in vocal PA, keyboards, club music systems, and stage monitors. Made in the USA. 7-year manufacturer's warranty!
| PRODUCT SPECIFICATIONS | |
| Power Handling (RMS) | 250 Watts |
| Power Handling (max) | 500 Watts |
| Impedance | 8 ohms |
| Frequency Response | 50 to 4,000 Hz |
| Sensitivity | 97 dB 1W/1m |
| Voice Coil Diameter | 2" |
| Magnet Weight | 34 oz. |
| THIELE-SMALL PARAMETERS | |
| Resonant Frequency (Fs) | 53 Hz |
| DC Resistance (Re) | 5.75 ohms |
| Voice Coil Inductance (Le) | 0.67 mH |
| Mechanical Q (Qms) | 8.14 |
| Electromagnetic Q (Qes) | 0.52 |
| Total Q (Qts) | 0.49 |
| Compliance Equivalent Volume (Vas) | 2.1 ft.³ |
| Mechanical Compliance of Suspension (Cms) | 0.36 mm/N |
| BL Product (BL) | 9.6 Tm |
| Diaphragm Mass Inc. Airload (Mms) | 25g |
| Maximum Linear Excursion (Xmax) | 3 mm |
| Surface Area of Cone (Sd) | 344.9 cm² |
